3.13 Wheel Alignment:
3.13 Wheel Alignment:
Wheel alignment is the state in which all wheels on a vehicle are pointed in the optimum direction relative to the road and each other.

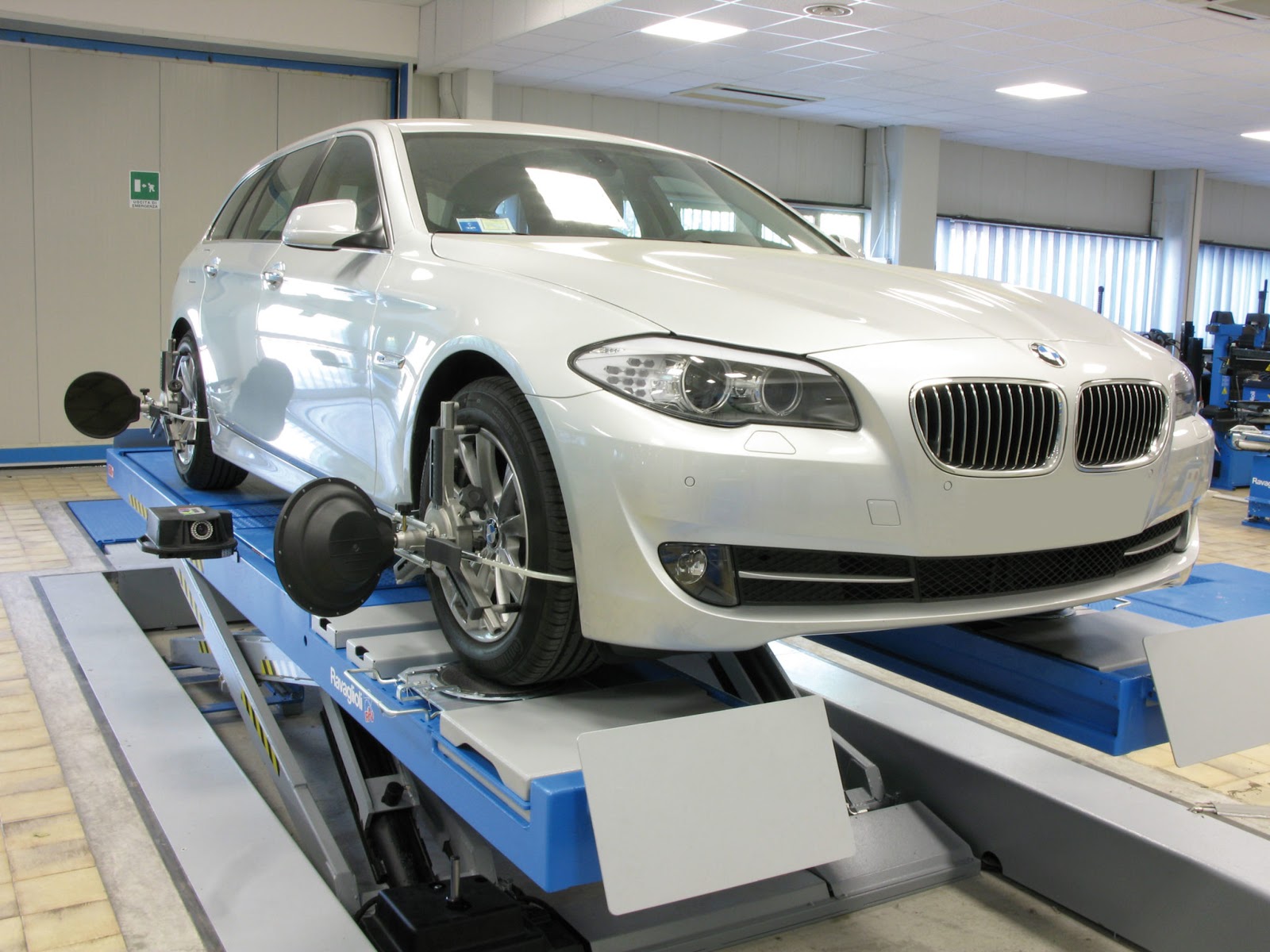

Fig 1: Wheel alignment setup |
Wheel
alignment is a part of standard automobile steering maintenance that consists of
adjusting the angles of wheels to the car manufacturer specifications. The
purpose of these adjustments is to reduce tyre wear, and to ensure that vehicle
travel is straight and true path (without "pulling" to one side).
The key
to proper alignment is adjusting the angles of the wheels (tyre) which affect
how they make contact with the road. It also refers to the adjustment of a
car’s suspension.
The primary
and secondary are two main angles of steering geometry for wheel alignment.
The
primary angles are the basic angle alignment of the wheels relative to each
other and to the car body. These adjustments are the camber, caster and toe.
The
secondary angles include numerous other adjustments, such as: SAI (Steering
Axis Inclination or kingpin inclination), Included angle, Toe out on turns, Maximum
Turns, Toe curve change, Track width difference, Wheelbase difference, Front
ride height, Rear ride height, Frame angle and Setback (front & rear).
Original
Equipment Manufacturers (OEM) provide wheel alignment specifications when
selling their vehicles. You can maximise your vehicle’s steering response and
maintain its driving direction by checking your vehicle’s wheels regularly
according to the manufacturer’s guidelines. If they have become misaligned you
should re-align the suspension as well as the wheels by correcting the wheel balancing
& wheel alignment angles, namely: camber, caster, toe-in and toe-out etc.
A proper
wheel alignment of your car has provides a better performance of steering while
braking & tracking.
Causes of
wheel alignment need:
Driving
on misaligned wheels is a safety hazard as it can cause your car to drift out
of traffic lanes and cause a collision. It also leads to increased friction
between your tyres and the road, resulting in the tyre treads rapidly thinning,
causing poor road performance and even rapid loss of inflation pressure.
Wheel
alignment problems (misalignment) can occur gradually as a result of poorly
maintained roads and vehicle wear, or suddenly from impact. The most common
causes of slow wheel misalignment are:
Suspension
component wear
Massive
torque and friction from driving placing pressure on shocks, springs and tyres
Hitting
potholes at speed
Crashing
into large road obstacles
Parking
against pavements forcibly
Symptoms
and Identification of need of wheel alignment:
Poorly
aligned tyres wear aggressively, which shortens their achievable kilometres and
results in flat tyres, rapid loss of inflation pressure, and nasty accidents.
There
are a couple ways to tell if your car needs a tire alignment. If you've noticed
one or more of these indicators, you should have your alignment checked by a
licensed service technician immediately.
As wheel
misalignment symptoms usually appear gradually, you may not notice the problem
initially. However, by paying careful attention to symptoms you can easily save
yourself time and money and keep yourself safe behind the wheel.
Wheel
alignment problems can become apparent while driving or when your vehicle is
stationary. Here are ways to identify poor wheel alignment:
When Driving:
Steering
wheel jerking or vibrating and not returning to its normal position after
turning a corner and vehicle pull way on to the left or right or one side
automatically.
Your
steering wheel is off center when driving straight,
When
under steering and over steering may arise,
Uneven
tyre treads wear,
Tyres
squealing while turning,
Excessive
shoulder rib wear on the inner or outer shoulder of a tyre (indicating camber
setting problems).
While Stationary:
Park
your car with the wheels pointing forward and stand a few metres in front of
it. Look at both sides of your car and inspect whether your wheels are standing
straight up or are slanting inwards or outwards.
Around
every 5,000 to 7000 km you must check all your tyres, including the spare. Poor
shock absorbers can also cause faster tyre deterioration from force impacting
your wheels, so while you’re there have your struts and shocks checked at the
same time.
Importance
of wheel alignment:
1.
Improve Handling: - This helps in controlling the vehicle. Improper handling
can be due to vehicle pulling on one side, vibration of the steering wheel.
2.
Improves tyre life and performance: - Proper rolling tyre contact on road and
prevention of slipping of the tyres due to improper alignment results in better
tyre life.
3. Helps
in identifying problems: - Improper alignment could be a symptom of something
wrong in the vehicle. A check on this can lead to correction in the fault in
the vehicle.
4.
Ensures Safety: - By keeping the system in order by removing the defective
parts, enhances the vehicle systems, especially the suspension system, leading
to better safety.
5.
Improves fuel efficiency: - By enhancing the performance of various systems,
leads to better fuel efficiency from the vehicle.
Importance
of wheel alignment according to tyre wear:
Improper
wheel or tyre alignment can cause your tyres to wear unevenly and prematurely.
Here are some specific types of undue tread wear attributable to misalignment:
FEATHERING
Tires
are “feathered” when the tread is smooth on one side and sharp on another. This
is usually a sign of poor toe alignment.
CAMBER
WEAR
This
strain of tread wear means the inside or outside of the tread is significantly
more worn than the center of the tread. As its name implies, positive or
negative camber causes this type of wear.
HEEL/TOE
WEAR
This
happens when one side of your tread blocks wears down more quickly than the
other in a circumferential direction. When you run your hand over the tread, it
will look and feel like saw teeth when viewed from the side. Heel/toe wear
could be a sign of under inflation and/or lack of rotation.
If
you’re experiencing any of these unusual wear patterns, you should have a
technician check your alignment. While tire wear prevention is a good reason to
keep your wheel alignment in check, the consequences of misalignment can also
play out in overall vehicle performance. A car that pulls to one side or steers
erratically, for example, probably has an alignment problem.
3.13.1 Wheel Balancing:

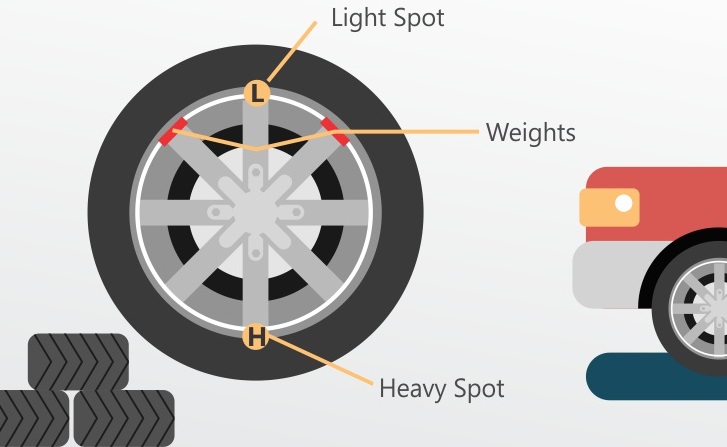

Fig 2: Wheel balancing |
Distinct
from wheel alignment, tyre or wheel balancing refers to compensation for any
weight imbalances in the tyre or wheel combination and is often performed in
conjunction with wheel alignment. There are two basic types of wheel imbalance
that need correction – static (single plane) and dynamic (dual plane).
Static
balance addresses balance on only one plane – vertical movement which can cause
vibration. A dynamic imbalance, on the other hand, addresses balance in two
planes – vertical movement and lateral movement. Both types of imbalance
require the use of a special balancing machine to help even things out.
Fig 3: Wheel balancing machine |
To begin
balancing your car wheels, a technician will mount them on the correct rims and
adjust the pressure to optimal inflation. Then each tire goes on the center
bore of a balancing machine. The machine spins the tire at a high speed to
measure the wheel/tire combination imbalance. It signals how much weight the
tech should add to balance out the tire and the areas where said weight is
needed.
Wheel
balancing is essential for proper tyre care for the same reason as wheel
alignment: prevention of premature tread wear. Having wheel aligned and
balanced every 5,000 to 6,000 km can help maximize their lifespan and overall
performance. And wheel balancing is performing before wheel alignment for meeting
proper steering geometry.
